Precision Optics
Optics & Windows
Custom-engineered windows and optics precision-crafted up to meter-class diameters to handle your toughest spectral requirements and environmental demands.

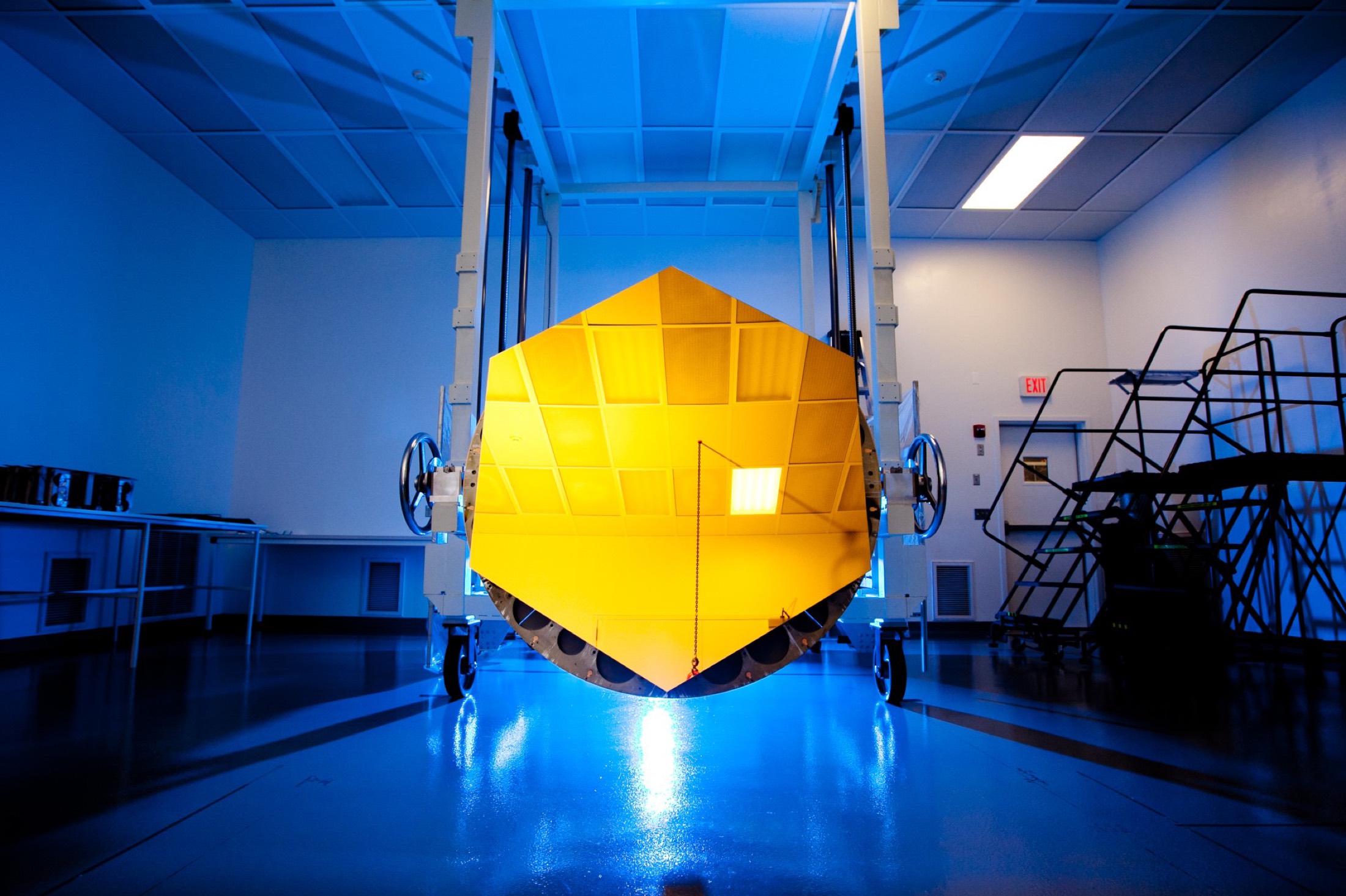

Optics
Precision optical components engineered for exceptional performance across defense and commercial platforms, spanning reflective and refractive elements. Mirror and structural substrates are chosen for stiffness, thermal stability, and weight; refractive substrates for spectral band, dispersion, and thermal behavior — in both cases matched to the thermal, radiation, and mass constraints of the platform. Figure, surface quality, and dimensional stability are held through fabrication for airborne, space-based, and terrestrial systems.
- Engineering
- Reflective and refractive elements, with lightweight, high-stiffness substrates for weight- and inertia-critical structures
- Materials
- Reflective: aluminum, silicon carbide, beryllium, AlBeMet, nickel, and Zerodur. Refractive: standard glasses, fused silica, calcium fluoride, magnesium fluoride, silicon, germanium, zinc selenide, sapphire, spinel, and chalcogenide glasses
- Performance
- Optimized for figure, surface quality, and dimensional stability under thermal and mechanical load
- Domains
- Airborne, space-based, and terrestrial platforms

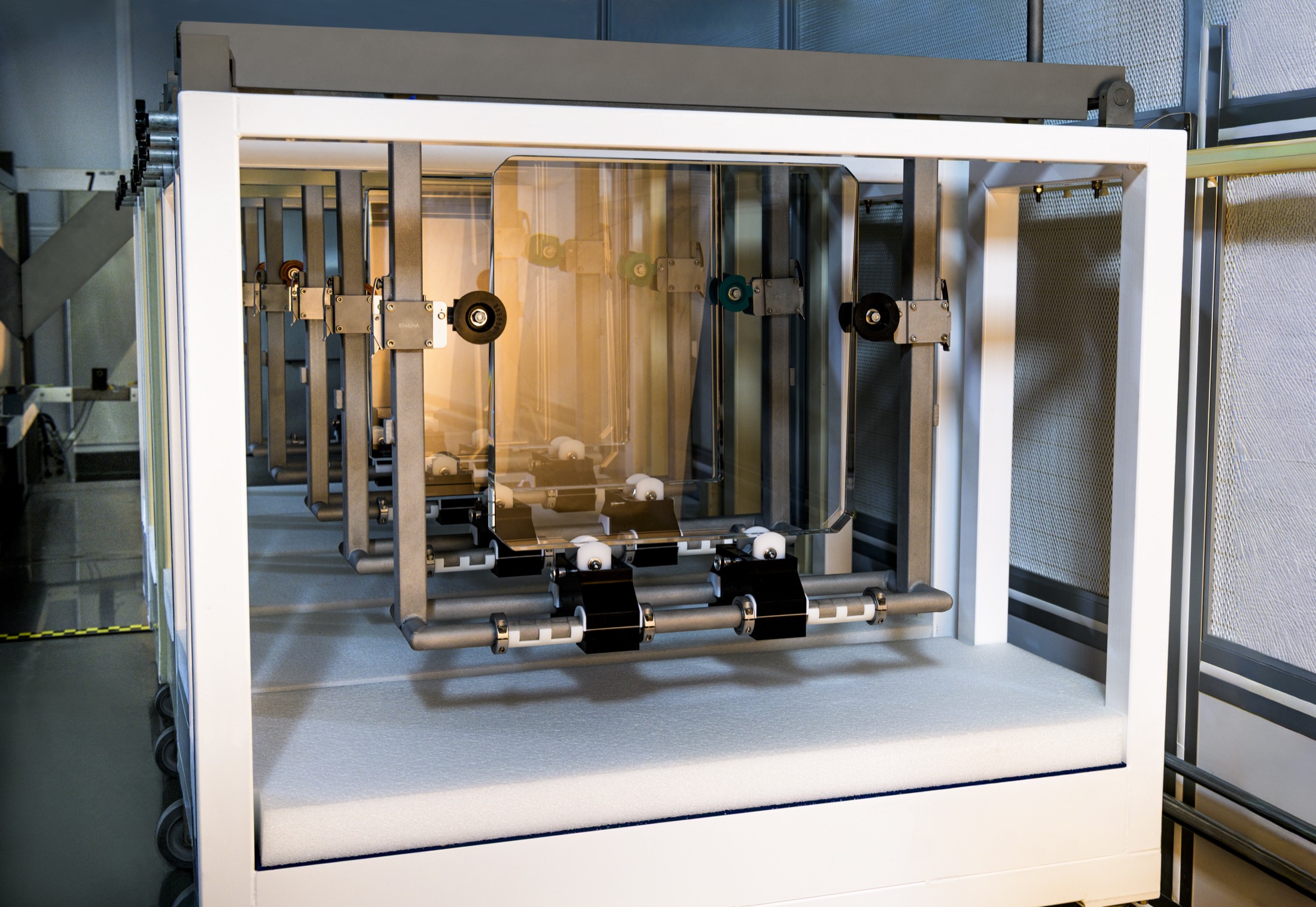

Windows
Precision optical windows engineered for exceptional performance across defense and commercial platforms, with substrate selection driven by velocity regime rather than platform type alone — spectral coverage traded against thermal and erosion robustness at speed. Material experience spans standard glasses and fused silica through sapphire, spinel, ALON, MS zinc sulfide, and germanium, matched to the band coverage and survivability the operating environment demands.
- Engineering
- Substrate and coating selected by velocity regime, spectral band, and survivability requirements
- Materials
- Standard glasses and fused silica through sapphire, spinel, ALON, MS zinc sulfide, germanium, and chalcogenide IR substrates
- Performance
- Spectral coverage balanced against high-temperature and erosion resistance for the intended flight regime
- Domains
- Airborne and terrestrial platforms, subsonic through high-speed regimes
Build with Attalon
Vertically integrated. Domestically sourced.
Build with proven directed energy components and partner with our team to configure the right solution for your system.
